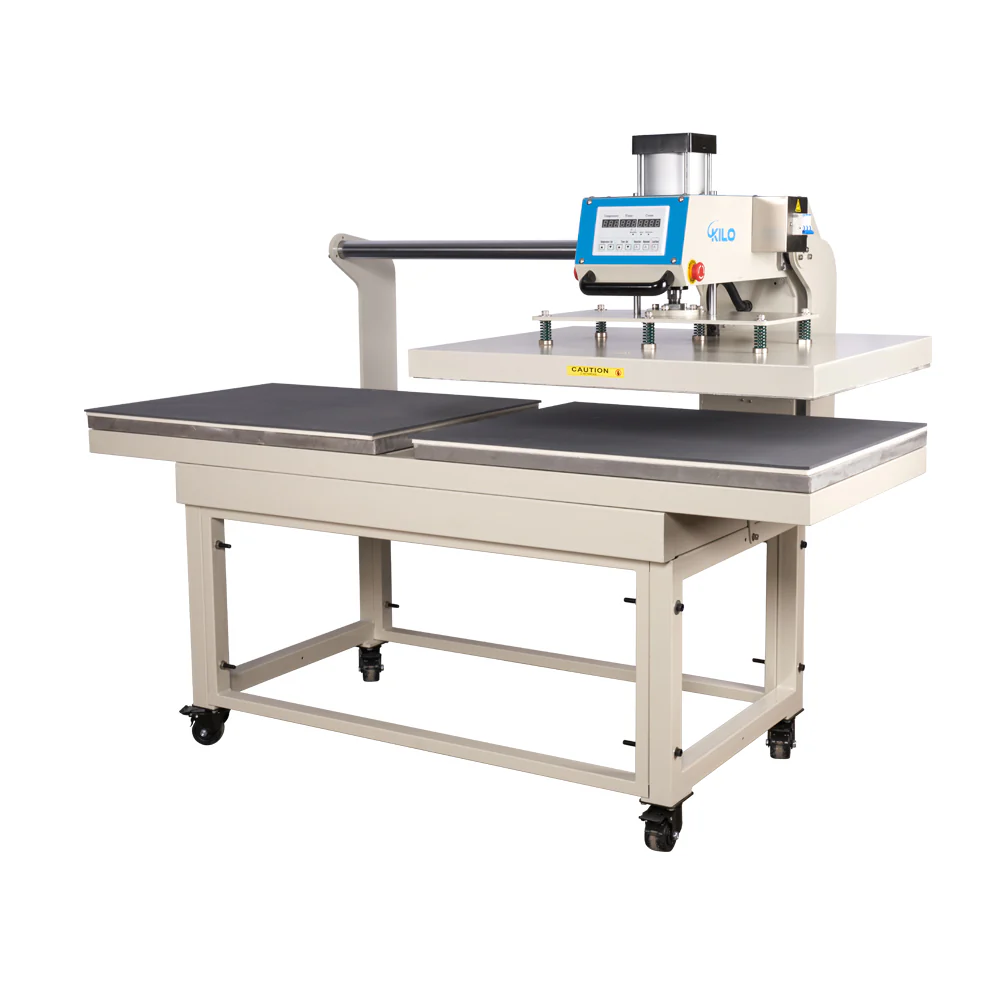

24X40 Large Formart Pneumatic Up Sliding Dual Platen Heat Press Machine White Blue Aluminium
Name: 24x40 large formart pneumatic up sliding dual platen heat press machine
Description:
Upper Slide Pneumatic Double Position Hot Stamping Machine
1. Heat press machine is full digital integrated display control;2. High accuracy of signal indication when press process is completed;3. Heating tube and heating plate are integrated into a whole part, short heating time, safe, durable and with even temperature;4. Heat press machine pressure can be adjusted up to 8kg/cm, It adopts connected track which is stable and convenient for sliding, with high efficiency;5. Special high temperature cloth for hot stamping machine covered6. Lower plate covered with 6mm silicon mat and 1cm sponge to heat even heating pressure 7. Heat press machine is automation print once backside inductive screw touched8. Left and right side bearings parallelly move the heat press machine
General Pressure for 0.4Mpa-0.6Mpa Heat Printing
The heat press machine can adjust to different pressure as needed
Different Charge Plug Can Be Available Depends on Customers Requirement
1
Heat Press Machine with Base Frame for Much Stable Printing and Easy Movement with the Brake Caster
1
Bright, Large Led Wide Viewing Angle Heat Press Machine
1
Hose for the Air Compressor Included
1
Technical Details
| Voltage(V): | 220V/ single phase |
| Power(KW): | 7 |
| Temperature(?): | 0-299 |
| Delaying Time(S): | 1-999 |
| G.W.(LB): | 396.9 |
| Packing size(in'): | 76.8'' x 37.4'' x 37.45'' |
| Accept Thickness: | Max. 2.36'' Thick Items |
| Range of Application: | Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Heat Plate Size: | 28" x 35'' (70 x 90cm) |
Time Requirements of Different Materials
| Pure cotton | 15s-25s |
| Polyester | 40s |
| Chemical fiber | 10s-40s |
| Pearl board | 60s-100s |
| Metal pendant | 60s |
| Mousepad | 50s |
| Vitrolite | 180s |
| Key ring pendant | 100s |
| Ceramics | 180s |
| Material | Temperature |
| Pure cotton | 356-428 (180-220) |
| Polyester | 356 (180) |
| Chemical fiber | 302-356 (150-180) |
| Pearl board | 356 (180) |
| Metal pendant | 356 (180) |
| Mousepad | 374 (190) |
| Vitrolite | 392 (200) |
| Ceramics | 356-428 (180-220) |
| Category: | Other |
| Is An Over Size Item: | True |
| Is This Item Customized: | No |
| Place of Origin: | China |
| Lithium Battery Contained: | No |
| Assembled Length: | 83.00(in) |
| Assembled Width: | 36.00(in) |
| Assembled Height: | 38.00(in) |
| Assembled Weight: | 396.90(lb) |
| Package Weight: | 441(lb) |
| Package Length: | 83.7(in) |
| Package Width: | 36.2(in) |
| Package Height: | 38.4(in) |
| Main Color: | White+Blue |
| Main Material: | Aluminium |
